Distribuidores autorizados de PVE® en República Dominicana.

Ascensores neumáticos

Nuestros ascensores residenciales son los ÚNICOS ascensores domésticos del mundo accionados por aire.

Mediante el uso de tecnología neumática para generar elevación, nuestros ascensores domésticos se mueven suavemente entre los pisos y requieren mucho menos espacio y energía que los ascensores residenciales tradicionales.

Solicita información

Nuestros principales modelos


Single Passenger Home Elevators - Email

  • Single Passenger Residential Elevator
  • 30″ Inch Exterior Diameter
  • 350 lbs Capacity

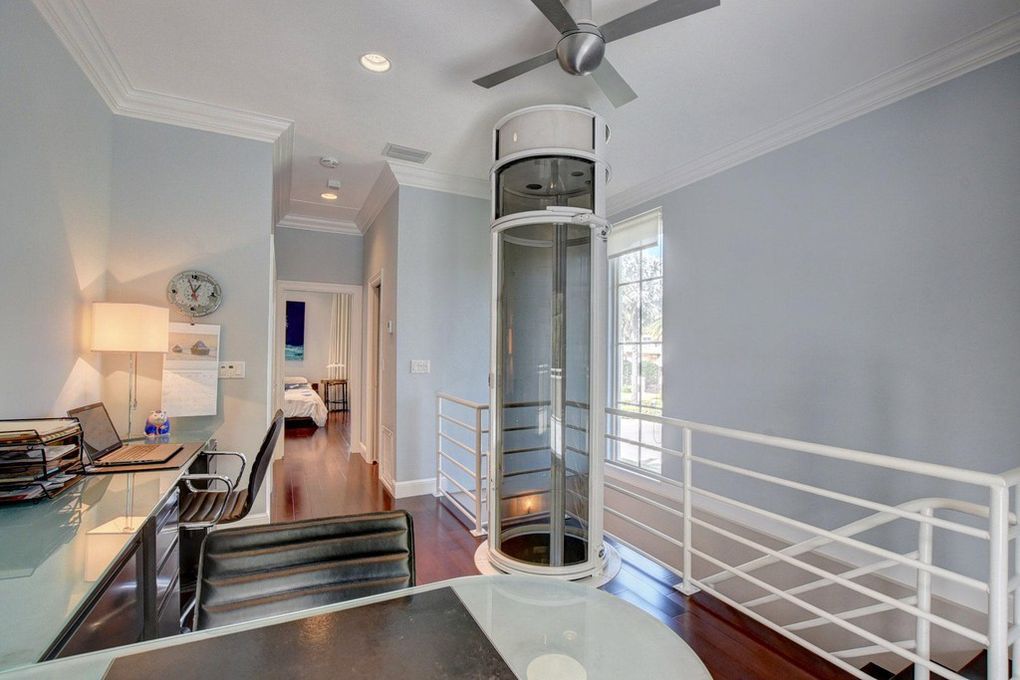

As the world’s smallest elevator, the PVE30 HOME ELEVATOR has quickly found its place as the ultimate space-saving solution for any home. If you are in need of a home elevator, but are limited in space, the Single-Passenger Elevator is the perfect solution for you.


Home Elevators – PVE30 Standard Features

  • No pit, hoist way, or machine room required
  • 50 ft (15m) Total Rise Max
  • 35 ft/M traveling speed
  • Two to Five Stops
  • External cylinder diameter: 30 inches (750mm)
  • Internal cabin diameter: 20 ½ inches (521mm)
  • Internal cabin height: 6’7” (79 inches/ 2005mm)
  • Entrance way opening: 20 ½ inches (521mm)
  • Through Floor or Balcony Mount Landings
  • Power Supply: 25 AMP 220VAC
  • In-line door openings
  • Aluminum and polycarbonate cylinder structure
  • Automatic interior LED lighting and fan
  • Mechanical emergency safety brake system
  • One year limited manufacturer warranty

Residential Elevator PVE37 - Email

  • Two-Passenger Home Elevator
  • 37″ Inch Exterior Diameter
  • 450 lbs Capacity

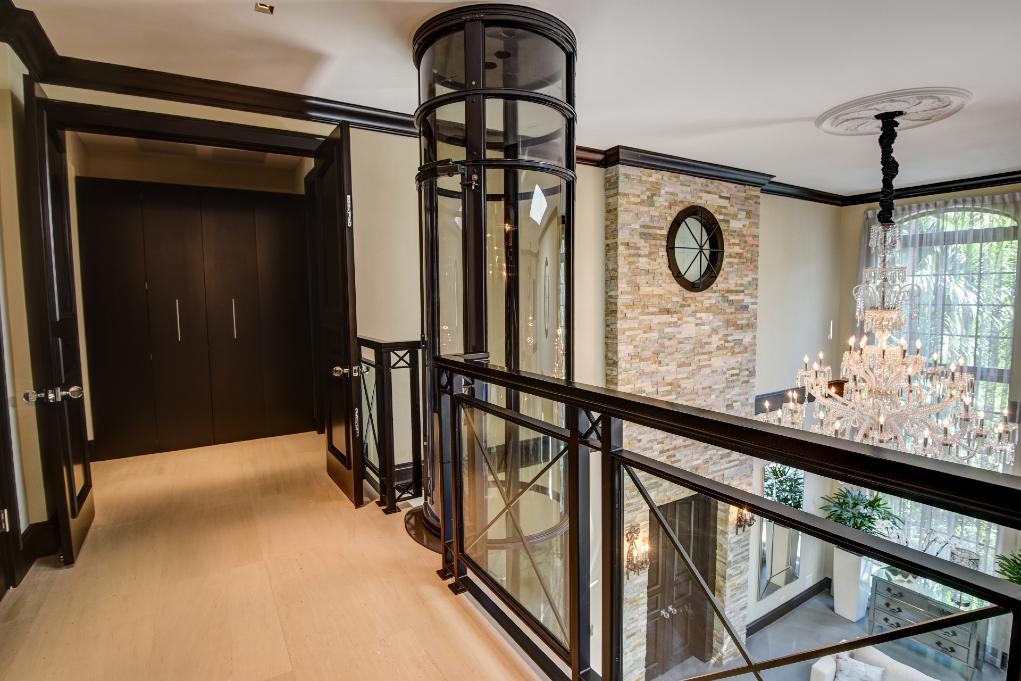

Introduced to the elevator industry in 2002, the PVE37 is the first Pneumatic Vacuum Elevator model developed and distributed worldwide. As the ideal space saving solution, this Two-Passenger Residential Elevator can fit virtually anywhere inside the home without the consuming footprint of traditional home elevators.


Residencial Elevators – PVE37 Standard Features

  • No pit, hoist way, or machine room required
  • 50 ft (15m) Total Rise Max
  • 35 ft/M travelling speed
  • Two to Five Stops
  • Self supporting structure
  • External cylinder diameter: 37 inches (933mm)
  • Internal cabin diameter: 32 inches (813mm)
  • Internal cabin height: 6’5” (77 inches/ 1956mm)
  • Entrance way opening: 21 inches (534mm)
  • Through Floor or Balcony Mount Landings
  • Power Supply: 30 AMP 220VAC
  • In-line, 180° and 90° door openings*
  • Aluminum and polycarbonate cylinder structure
  • Automatic interior LED lighting and fan
  • Mechanical emergency safety brake system
  • One year limited manufacturer warranty

HOME ELEVATORS – PVE52 - Email

  • Three-Passenger Wheelchair Accessible Home Elevators
  • 52-11/16″ Inch Exterior Diameter
  • 525 lbs Capacity

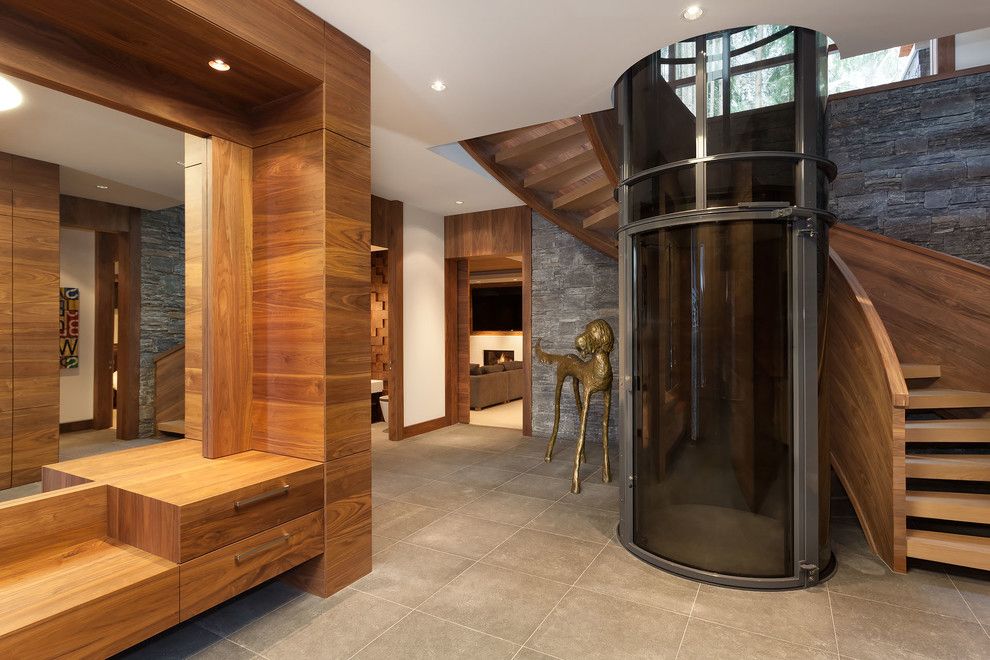

The largest Residential Elevator model available, the PVE52 is the perfect choice for those in need of a Wheelchair Accessible Residential Elevator or wheelchair lift. With it’s quick installation, innovative design and minimal pre-construction requirements, this Three-Passenger Residential Elevator offers everything you need in a residential elevator.



Home Elevators – PVE52 Standard Features

  • No pit, hoist way, or machine room required
  • Self supporting structure
  • 50 ft (15m) Total Rise Max
  • 30 ft/M travelling speed
  • Two to Five Stops
  • External cylinder diameter: 52 11/16 inches (1,316mm)
  • Internal cabin diameter: 43 1/2 inches (1118mm)
  • Internal cabin height: 6’7” (79 inches/ 2007mm)
  • Entrance way opening: 32 inches (813mm)
  • Through Floor or Balcony Mount Landings
  • Power Supply: 40 AMP 220VAC
  • Fully Certified Residential Elevator – Not ADA Compliant
  • In-line and 180° door openings
  • Aluminum and polycarbonate cylinder structure
  • Automatic interior LED lighting and fan
  • Mechanical emergency safety brake system
  • One year limited manufacturer warranty
